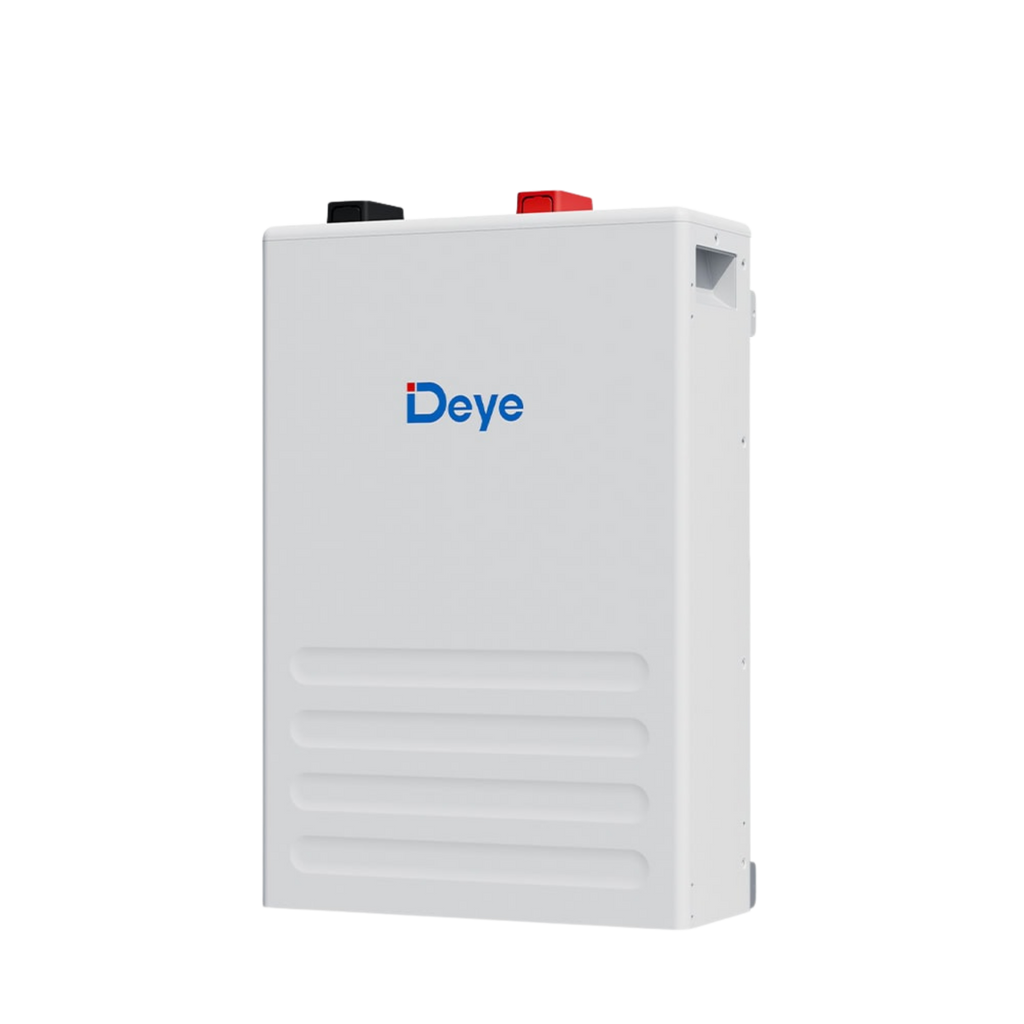

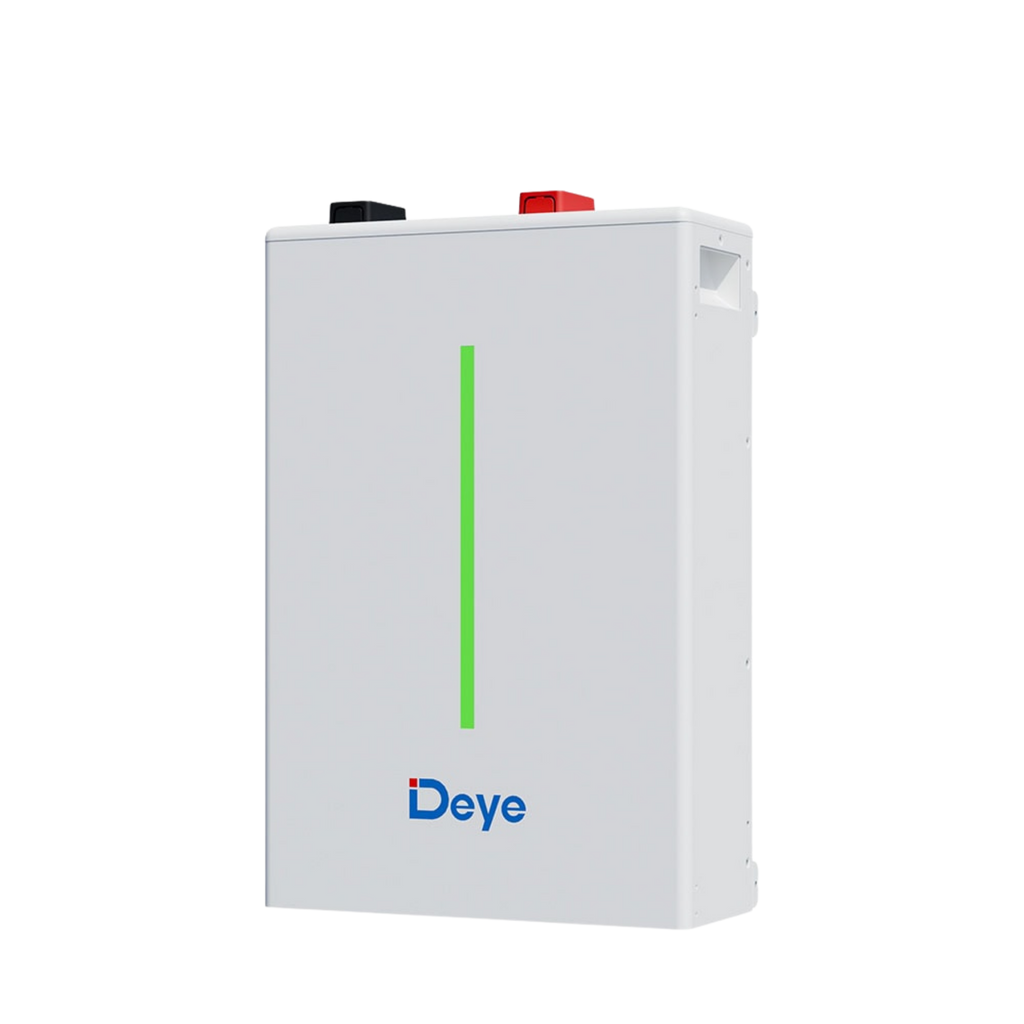

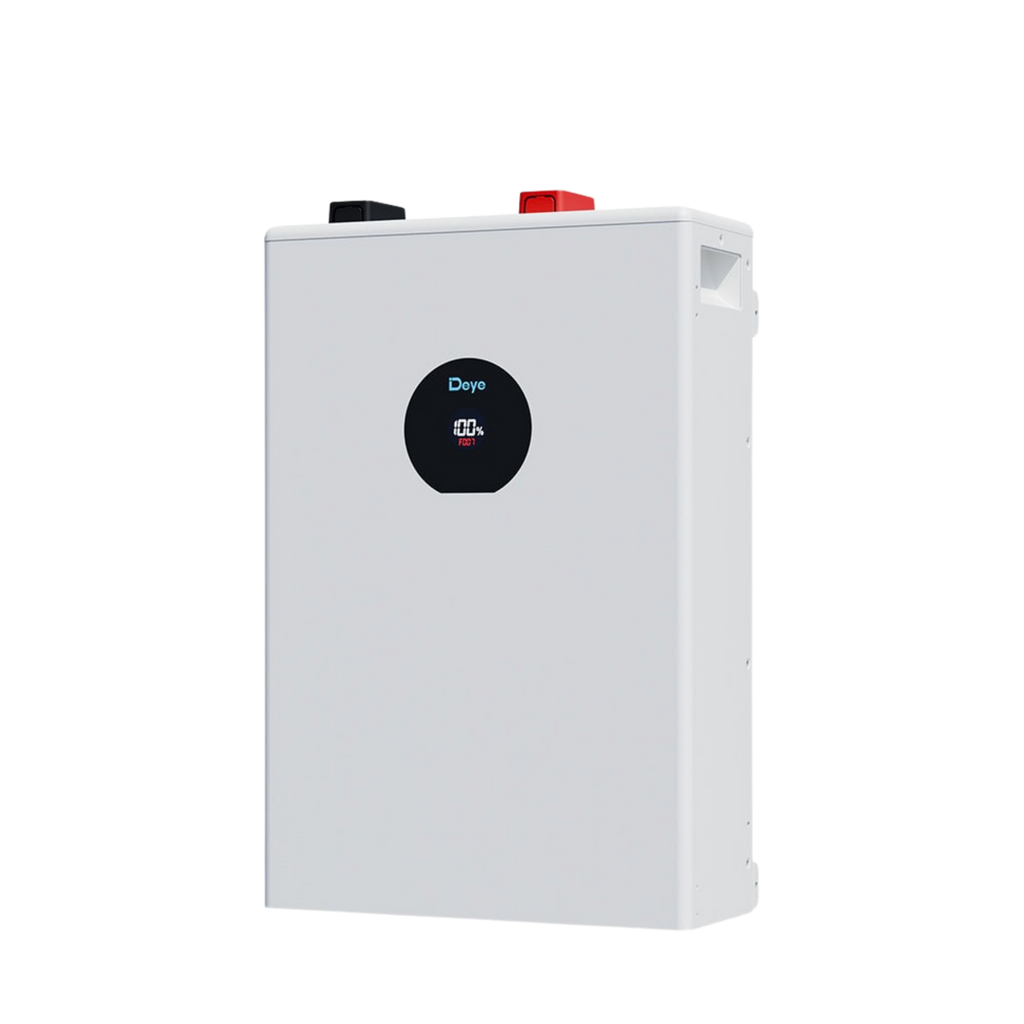

5.12kWh Deye SE-F

• 5.12kWh Nominal Capacity – Ideal for residential backup and daily cycling

• 48V System Voltage – Compatible with most 48V hybrid and off-grid inverters

• Advanced Built-in BMS – Intelligent battery management for safe operation

• Expandable System Design – Parallel capable for increased storage capacity

• LiFePO₄ Technology – Enhanced safety and thermal stability

• Long Cycle Life – 6000+ cycles at 80% Depth of Discharge

• High Round-Trip Efficiency – Optimised energy usage

• Wall-Mounted Design – Compact, clean installation

• CAN & RS485 Communication – Seamless inverter integration

• Comprehensive Protection – Overcharge, over-discharge, short circuit, overcurrent, and temperature protection

🔧 Technical Specifications

• Nominal Capacity: 5.12kWh

• Nominal Voltage: 51.2V

• Usable Capacity: ±4.6kWh (at 90% DoD)

• Recommended Charge/Discharge Current: 100A

• Cycle Life: 6000+ cycles

• Communication Ports: CAN / RS485

• Protection Rating: IP20

• Operating Temperature: 0°C to +55°C (charge) / -20°C to +55°C (discharge)

• Installation: Wall-mounted

🏠 Ideal For

✔ Load shedding backup
✔ Solar energy storage systems
✔ Reducing grid dependency
✔ Residential & small business applications
✔ Expandable battery banks
