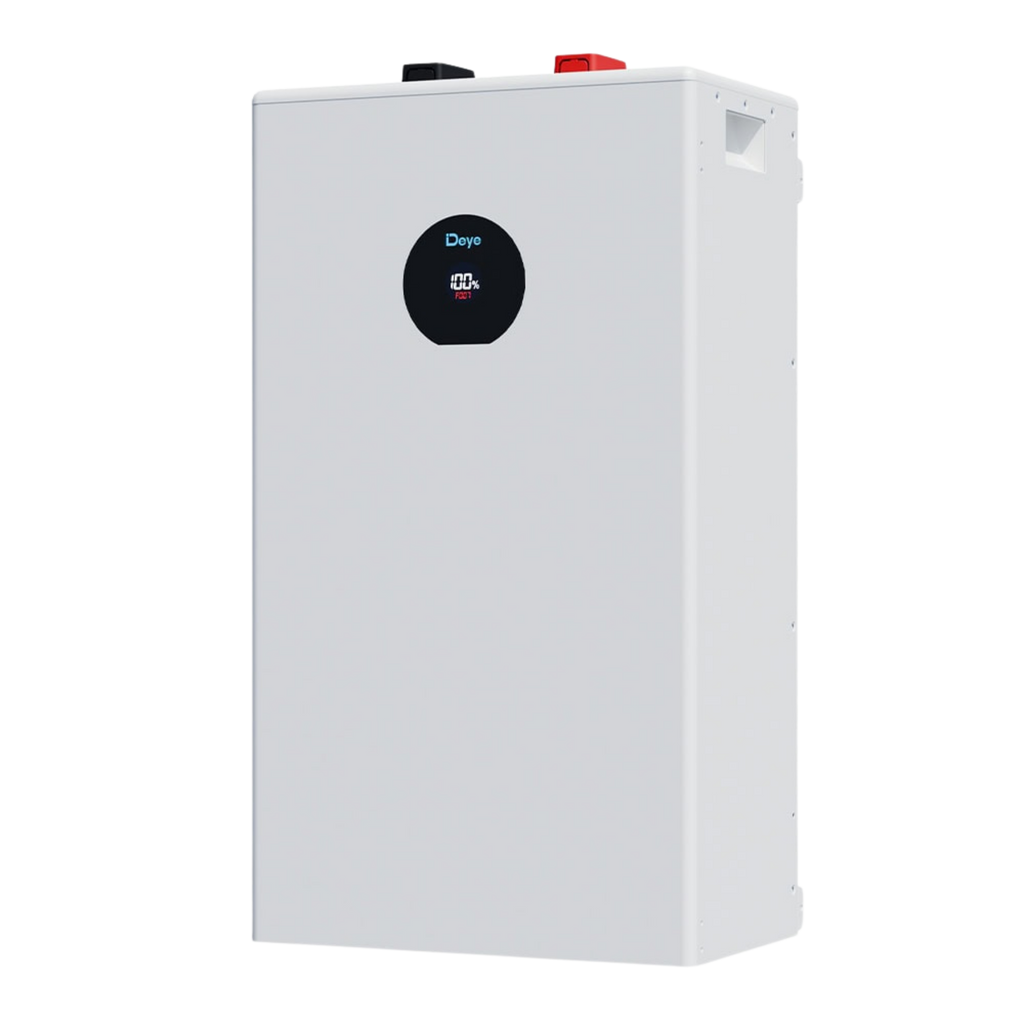

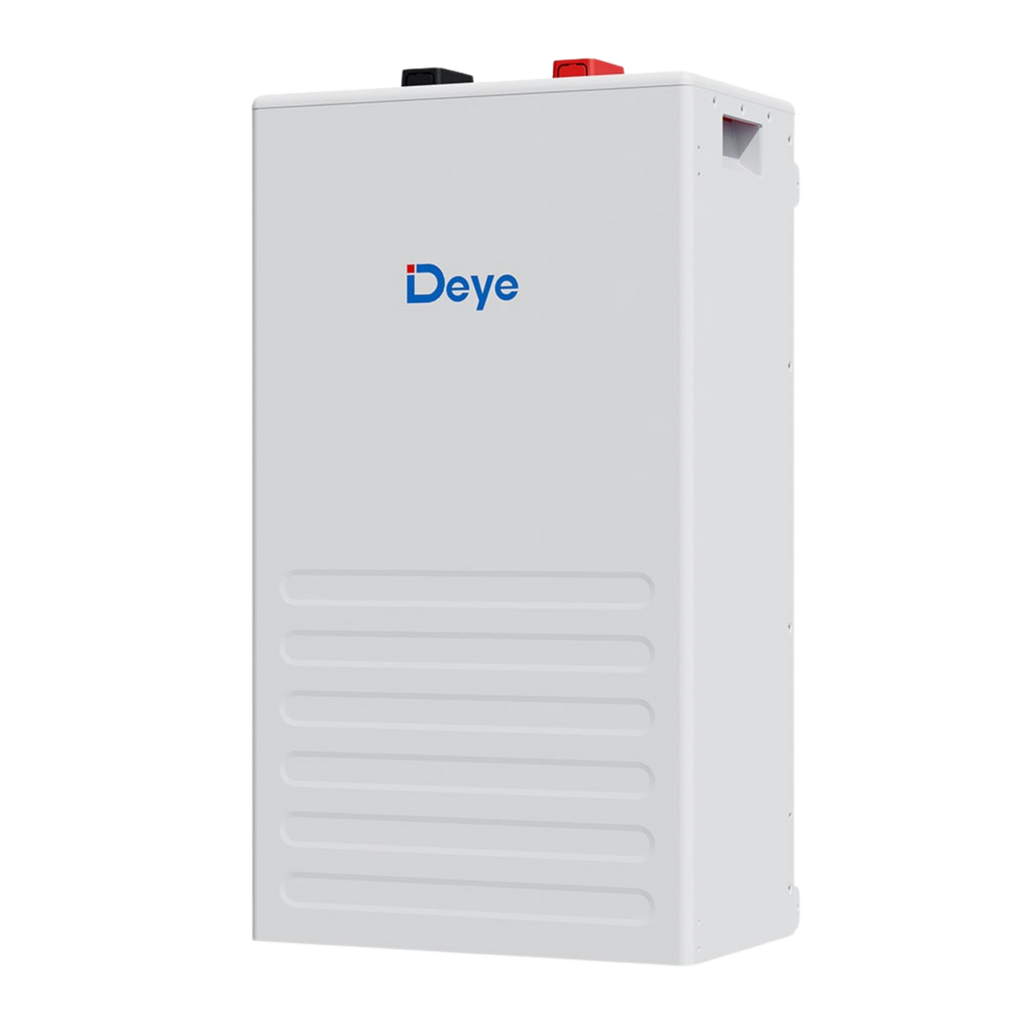

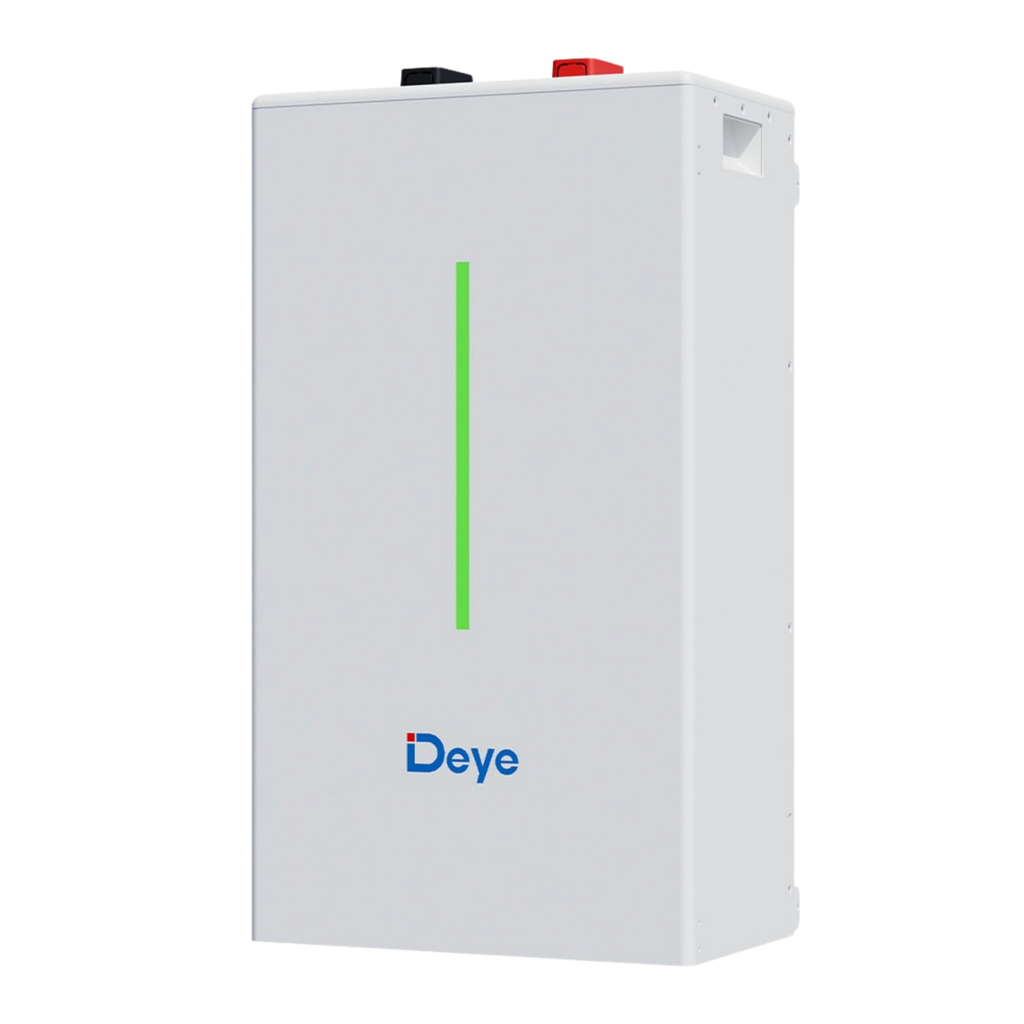

16kWh Deye SE-F

• 16kWh Nominal Capacity – Extended runtime for larger loads

• 51.2V System Voltage – Compatible with most 48V hybrid and off-grid inverters

• Advanced Built-in BMS – Intelligent cell balancing and multi-layer protection

• Parallel Expandable Design – Scale your storage system as energy needs grow

• LiFePO₄ Battery Technology – Enhanced safety, stability, and thermal performance

• 6000+ Cycle Life – Long-lasting performance for daily cycling

• High Round-Trip Efficiency – Maximises stored solar energy usage

• Wall-Mounted Installation – Clean, space-efficient design

• CAN & RS485 Communication Ports – Seamless inverter integration

• Comprehensive Protection – Overcharge, over-discharge, short circuit, overcurrent, and temperature safeguards

🔧 Technical Specifications

• Nominal Capacity: 16kWh

• Nominal Voltage: 51.2V

• Usable Capacity: ±14.4kWh (at 90% DoD)

• Recommended Charge/Discharge Current: 230A

• Cycle Life: 6000+ cycles @ 80% DoD

• Communication: CAN / RS485

• Protection Rating: IP20

• Operating Temperature:

  • Charge: 0°C to +55°C

  • Discharge: -20°C to +55°C

• Installation Type: Wall-mounted

🏠 Ideal For

✔ Large homes with high energy consumption
✔ Extended load shedding backup
✔ Solar self-consumption & grid reduction
✔ Commercial backup applications
✔ Expandable high-capacity storage systems
